Software Design Process

Software Design Processis the phase where developers plan how to turn a set of requirements into a working system like a blueprint for the software.

• Break down complex requirements into smaller, manageable modules or components.
• It bridges functional and non-functional requirements to coding, preventing costly rework.
• Design the system architecture and define how different components interact and work together.

Software Design Levels

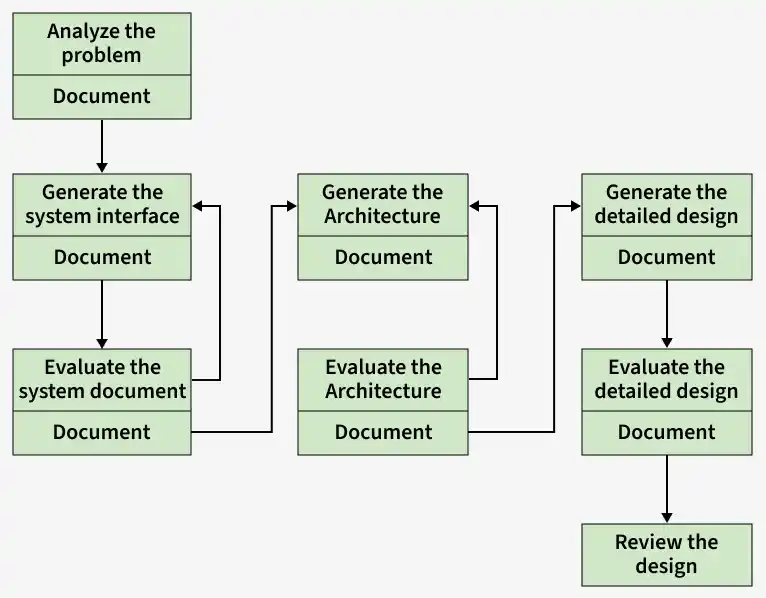

The software design process can be divided into the following three levels or phases of design:

1. Interface Design

Itis the specification of the interaction between a system and its environment. This phase proceeds at a high level of abstraction with respect to the inner workings of the system i.e, during interface design, the internal of the systems are completely ignored, and the system is treated as a black box. Attention is focused on the dialogue between the target system and the users, devices, and other systems with which it interacts. The design problem statement produced during the problem analysis step should identify the people, other systems, and devices which are collectively called agents.

Interface design should include the following details:

• Precise description of events in the environment, or messages from agents to which the system must respond.
• Precise description of the events or messages that the system must produce.
• Specification of the data, and the formats of the data coming into and going out of the system.
• Specification of the ordering and timing relationships between incoming events or messages, and outgoing events or outputs.

2. Architectural Design

It is the specification of the major components of a system, their responsibilities, properties, interfaces, and the relationships and interactions between them. In architectural design, the overall structure of the system is chosen, but the internal details of major components are ignored. Issues in architectural design includes:

• Gross decomposition of the systems into major components.
• Allocation of functional responsibilities to components.
• Component Interfaces.
• Component scaling and performance properties, resource consumption properties, reliability properties, and so forth.
• Communication and interaction between components.

The architectural design adds important details ignored during the interface design. Design of the internals of the major components is ignored until the last phase of the design.

3. Detailed Design

It is the specification of the internal elements of all major system components, their properties, relationships, processing, and often their algorithms and the data structures. The detailed design may include:

• Decomposition of major system components into program units.
• Allocation of functional responsibilities to units.
• User interfaces.
• Unit states and state changes.
• Data and control interaction between units.
• Data packaging and implementation, including issues of scope and visibility of program elements.
• Algorithms and data structures.

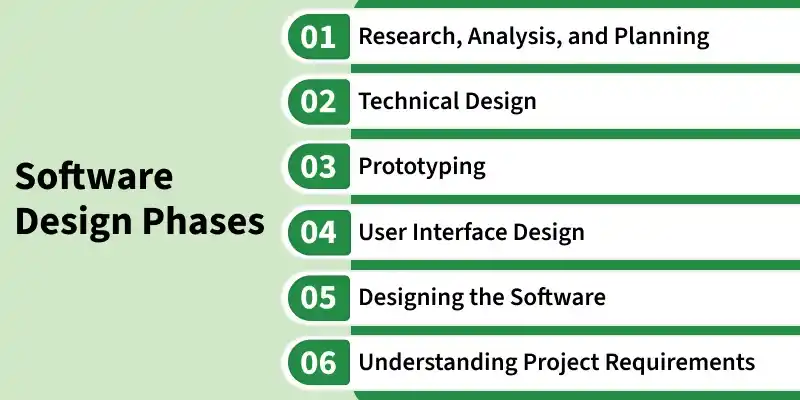

Software Design Phases

The Actual Software Design process travel through the one end to another end of making and Software well with completion of requirements and the phases which included in the same that are bellow:

1. Understanding Project Requirements: Before jumping into the design, the first step is to make sure the team understands what the users need, what the business goals are, and any potential challenges. This understanding sets the foundation for creating a design that meets both user and business needs.
2. Research, Analysis, and Planning: During this phase, the team gathers data through methods like interviews, surveys, and focus groups. This helps get a clearer picture of what the users want and allows the team to design with the user in mind, ensuring the software will truly meet their needs.
3. Designing the Software: In the design phase, the team starts creating visual elements like wireframes, user stories, and flow diagrams to map out how the system will work. Based on the feedback, prototypes are created and fine-tuned to make sure the design is moving in the right direction.
4. Technical Design: After gathering feedback, the team gets into more details with the technical design. This phase involves creating a thorough technical document that outlines exactly how the software will be implemented, including specific components and how they will work together.
5. User Interface Design: The focus here is on making sure the software is easy to use. UI designers work on the visual elements, navigation, and overall user experience to ensure the interface is intuitive and friendly.
6. Prototyping: Prototypes are created to visualize the design and functionality before the full development process begins. These can range from simple wireframes (low fidelity) to fully interactive models (high fidelity) depending on the stage of development.

Elements of Software Design

Good software design is built on several core element that work together to create effective system.

1. Architecture: This is the conceptual model that defines the structure, behavior, and views of a system. We can use flowcharts to represent and illustrate the architecture. A solid architecture verify the system is flexible, stable, and easy to maintain over time.
2. Modules: Modules as the building blocks of the system. Each one handles a specific task or feature. Breaking a system into smaller modules makes it easier to develop, test, and maintain the system. These are components that handle one specific task in a system. A combination of the modules makes up the system.
3. Components: This provides a particular function or group of related functions. They are made up of modules. Organizing the system into components helps keep the code clean and makes the system more adaptable.
4. Interfaces: These are smaller units within modules that focus on specific functions. This is the shared boundary across which the components of a system exchange information and relate.
5. Data: Data is at the heart of any system. It’s all about how information is stored, accessed, and shared.This is the management of the information and data flow.

How Software Design Fits into the SDLC

Software Design comes when the project requirement are done and when we are about to start the Development process, Here is How Software Design fits into the Software Development Life Cycle.

• Design the System Architecture: Create the overall structure of the software, including modules, components, and their interactions.
• Prepare Design Artifacts: Develop wireframes, UI/UX designs, data flow diagrams (DFDs), and database designs to visualize the system.
• Define Component Functionality: Specify how each component will work together to ensure smooth functionality and efficient data flow.
• Begin Software Development: Once the design is finalized and approved, the implementation (coding) phase starts, where developers build the actual software.

Tools for Software Design

There are many tools that make the process easier and more efficient, whether you're working on wireframes, prototypes, or documentation. Here are some popular tools:

1. Figma
2. Balsamiq
3. Axure RP
4. Sketch
5. InVision Studio
