本文详细介绍了如何使用Maven构建MyBatis Generator的逆向工程，包括在Maven仓库中添加依赖，下载并配置generatorConfig.xml，修改pom.xml，运行生成代码，解决编译错误，直至最终成功生成包括Mapper、Model和Example在内的各类文件。

一、新建Maven逆向工程的详细流程

mybaties的generator官网：http://www.mybatis.org/generator/

maven仓库：https://mvnrepository.com/

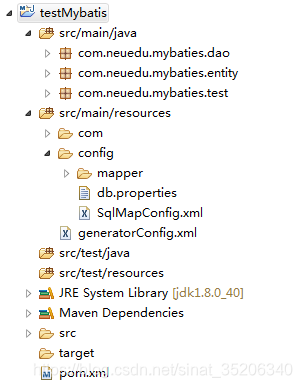

工程目录：
在这里插入图片描述

二、搭建Maven工程的详细步骤

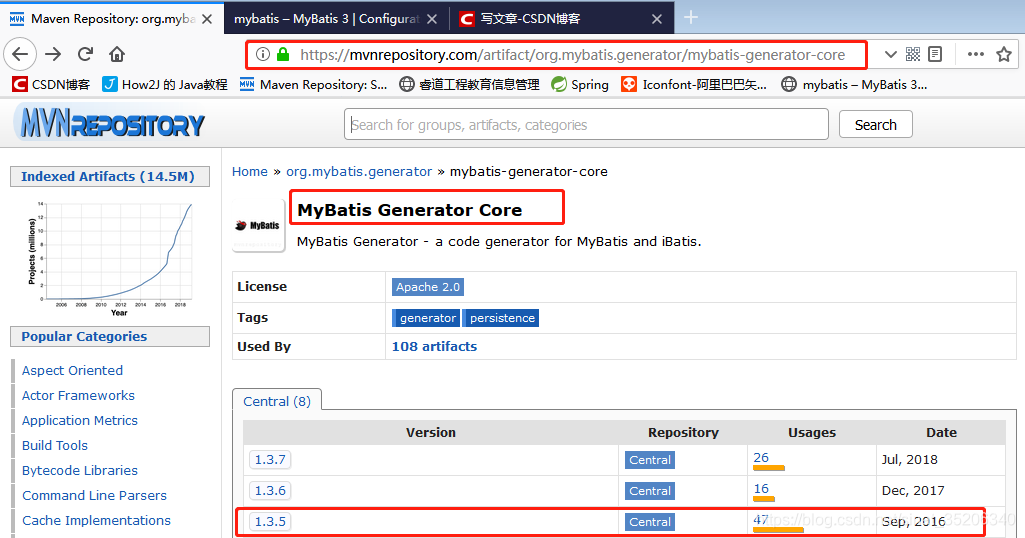

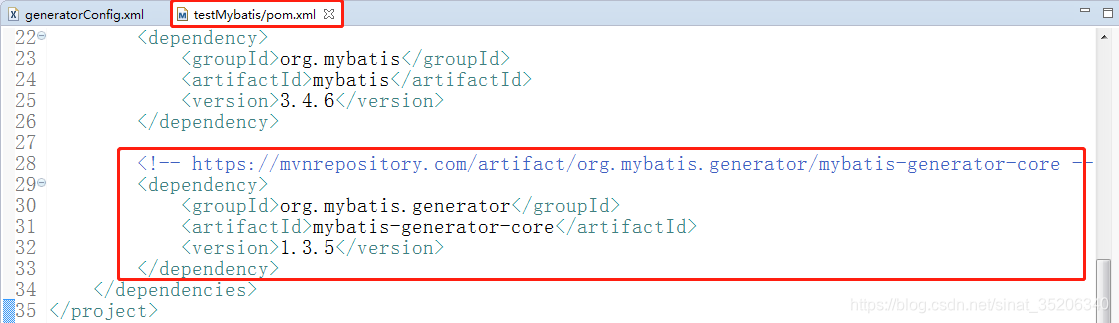

2.1 在Maven仓库中搜索Mybatis Generator Core添加依赖

<!-- https://mvnrepository.com/artifact/org.mybatis.generator/mybatis-generator-core -->
<dependency>
    <groupId>org.mybatis.generator</groupId>
    <artifactId>mybatis-generator-core</artifactId>
    <version>1.3.5</version>
</dependency>

在这里插入图片描述

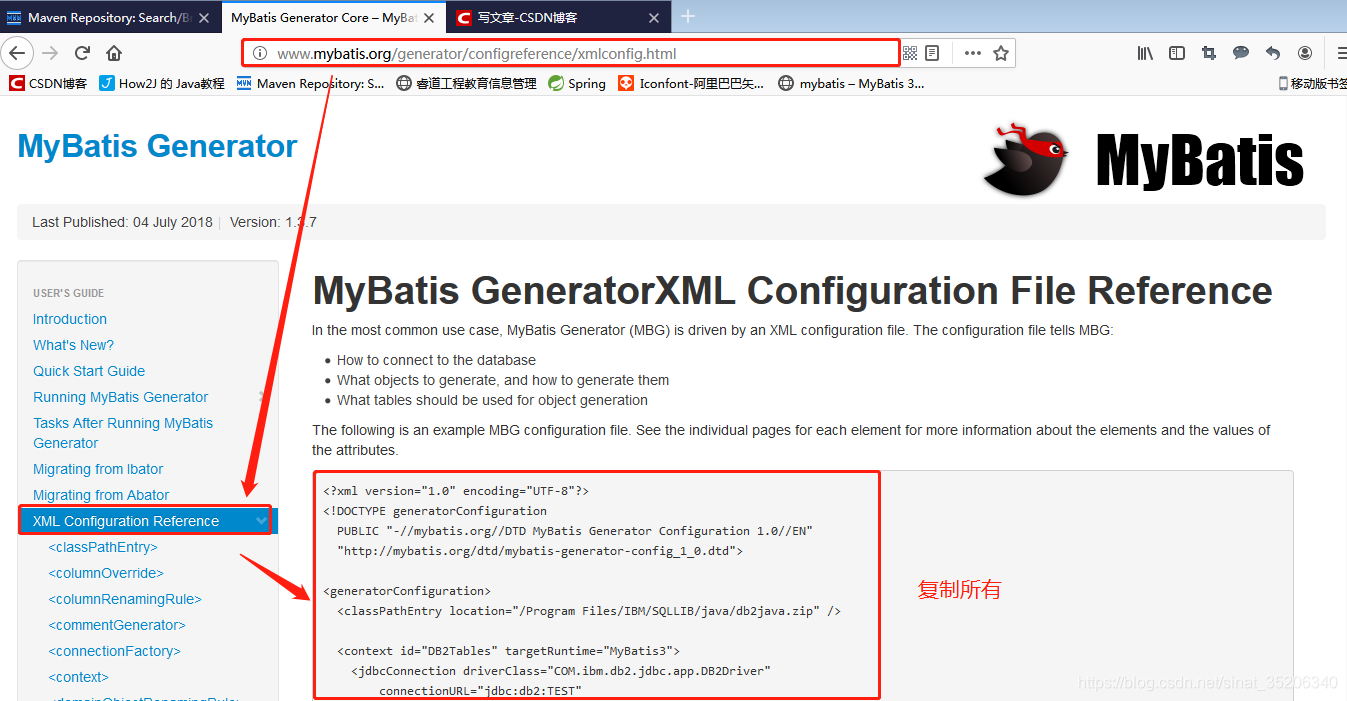

2.2 在mybaties Generator官网下载xml配置文件

网址：http://www.mybatis.org/generator/configreference/xmlconfig.html

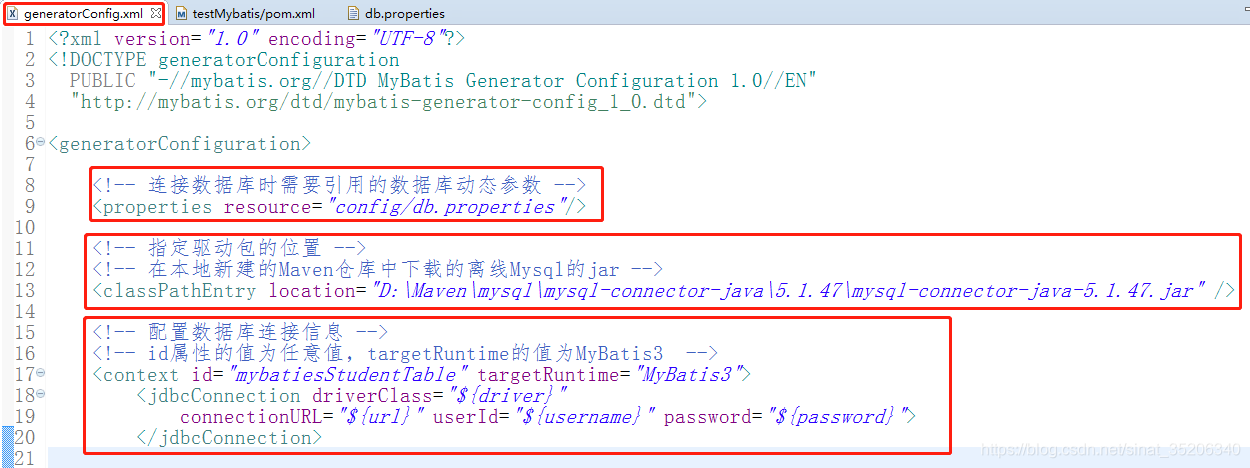

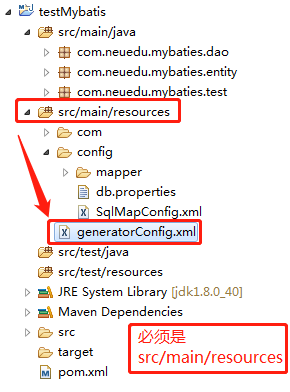

2.2.1 新建generatorConfig.xml配置文件

在这里插入图片描述

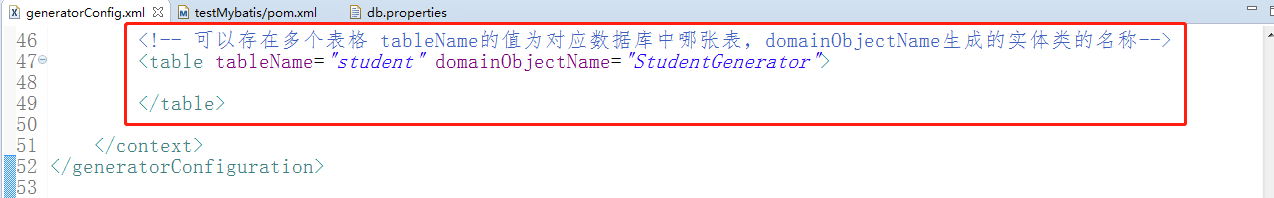

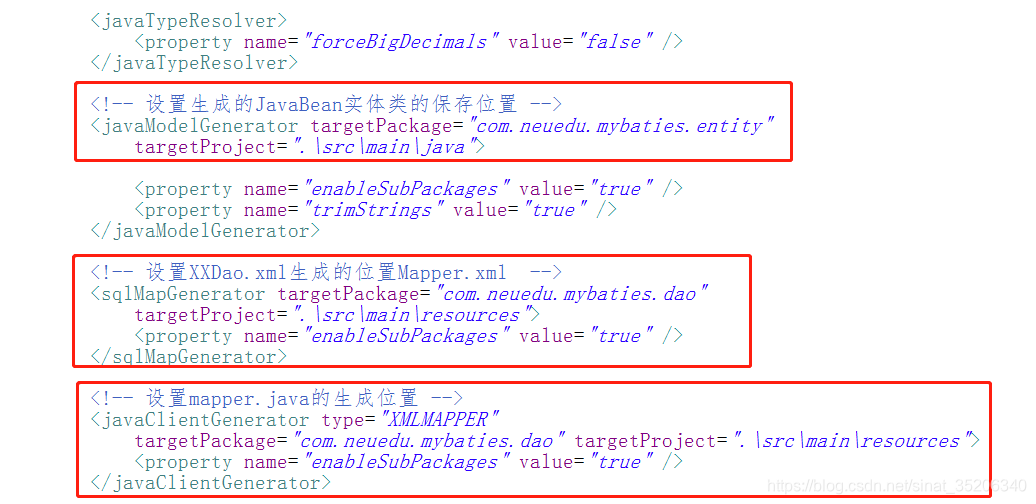

将拷贝的内容放在generatorConfig.xml文件中

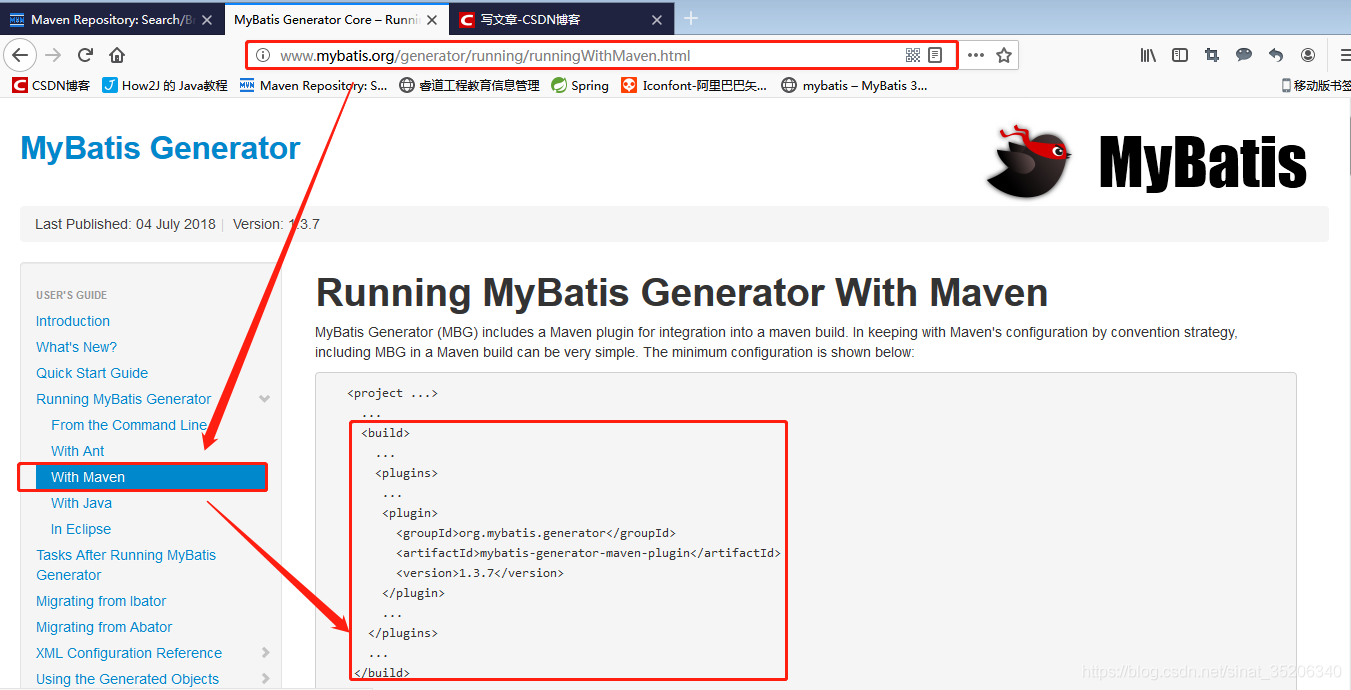

2.3 添加build标签到pom.xml文件中

在这里插入图片描述网址：http://www.mybatis.org/generator/running/runningWithMaven.html

 <build>
       <plugins>
        <plugin>
          <groupId>org.mybatis.generator</groupId>
          <artifactId>mybatis-generator-maven-plugin</artifactId>
          <version>1.3.5</version>
        </plugin>
      </plugins>
    </build>

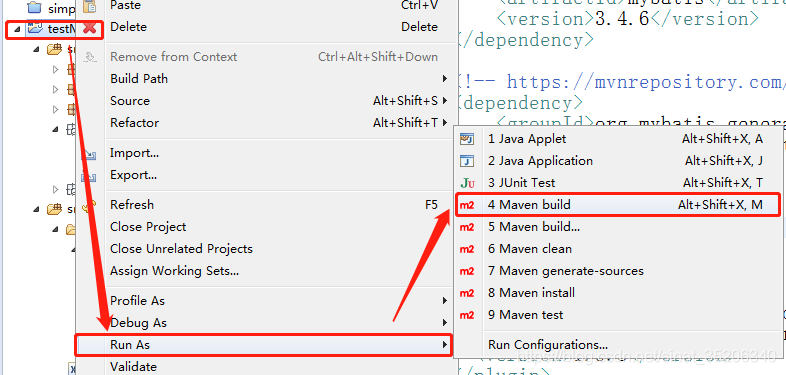

2.4 运行

在这里插入图片描述

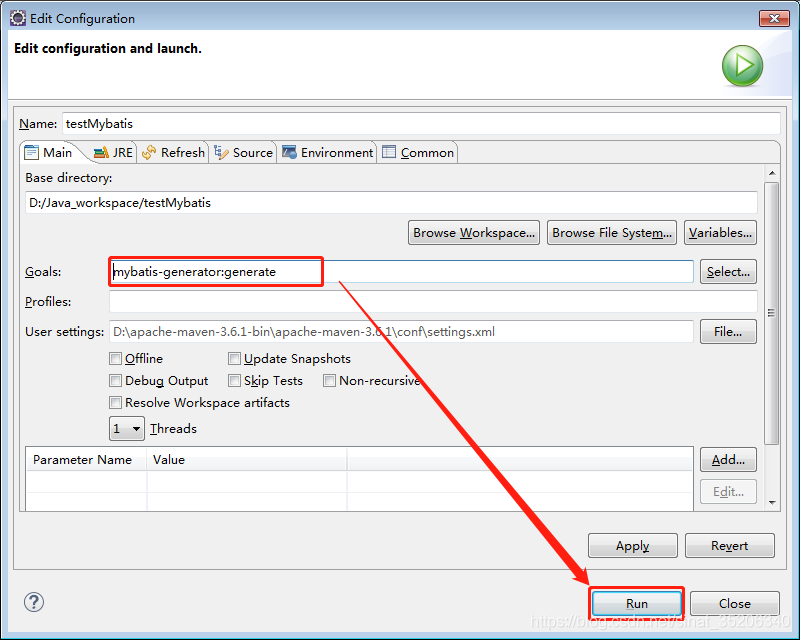

命令：mybatis-generator:generate

在这里插入图片描述

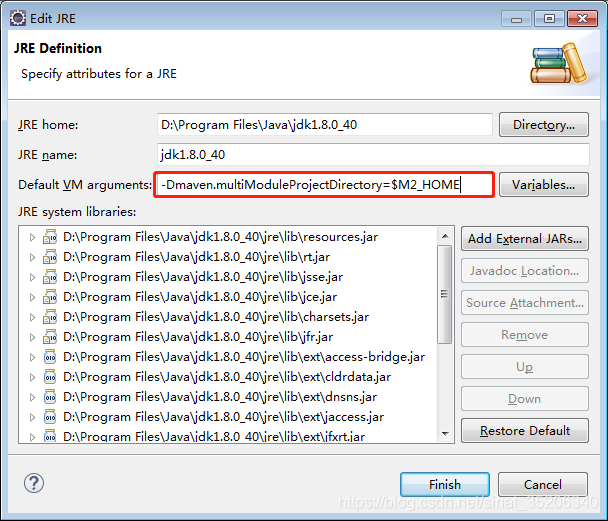

2.5 编译时出错

Window-Preference-Java-Install jre
在这里插入图片描述

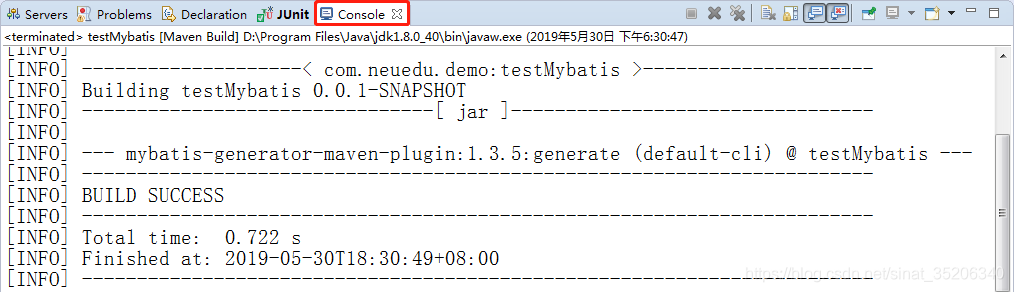

2.6 运行结果

在这里插入图片描述

2.7 详细代码

generatorConfig.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
  PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
  "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>

	<!-- 连接数据库时需要引用的数据库动态参数 -->
	<properties resource="config/db.properties"/>
	<!-- 指定驱动包的位置 -->
	<!-- 在本地新建的Maven仓库中下载的离线Mysql的jar -->
	<classPathEntry location="D:\Maven\mysql\mysql-connector-java\5.1.47\mysql-connector-java-5.1.47.jar" />

	<!-- 配置数据库连接信息 -->
	<!-- id属性的值为任意值，targetRuntime的值为MyBatis3  -->
	<context id="mybatiesStudentTable" targetRuntime="MyBatis3">
		<jdbcConnection driverClass="${driver}"
			connectionURL="${url}" userId="${username}" password="${password}">
		</jdbcConnection>

		<javaTypeResolver>
			<property name="forceBigDecimals" value="false" />
		</javaTypeResolver>

		<!-- 设置生成的JavaBean实体类的保存位置 -->
		<javaModelGenerator targetPackage="com.neuedu.mybaties.entity"
			targetProject=".\src\main\java">

			<property name="enableSubPackages" value="true" />
			<property name="trimStrings" value="true" />
		</javaModelGenerator>

		<!-- 设置XXDao.xml生成的位置Mapper.xml  -->
		<sqlMapGenerator targetPackage="com.neuedu.mybaties.dao"
			targetProject=".\src\main\resources">
			<property name="enableSubPackages" value="true" />
		</sqlMapGenerator>

		<!-- 设置mapper.java的生成位置 -->
		<javaClientGenerator type="XMLMAPPER"
			targetPackage="com.neuedu.mybaties.dao" targetProject=".\src\main\java">
			<property name="enableSubPackages" value="true" />
		</javaClientGenerator>

		<!-- 可以存在多个表格 tableName的值为对应数据库中哪张表，domainObjectName生成的实体类的名称-->
		<table tableName="student" domainObjectName="StudentGenerator">

		</table>
	</context>
</generatorConfiguration>

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.neuedu.demo</groupId>
	<artifactId>testMybatis</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<dependencies>
		<!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>5.1.47</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/junit/junit -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>4.12</version>
			<scope>test</scope>
		</dependency>
		<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>3.4.6</version>
		</dependency>

		<!-- https://mvnrepository.com/artifact/org.mybatis.generator/mybatis-generator-core -->
		<dependency>
		    <groupId>org.mybatis.generator</groupId>
		    <artifactId>mybatis-generator-core</artifactId>
		    <version>1.3.5</version>
		</dependency>
	</dependencies>
	<!--添加build运行  -->
	 <build>
       <plugins>
        <plugin>
          <groupId>org.mybatis.generator</groupId>
          <artifactId>mybatis-generator-maven-plugin</artifactId>
          <version>1.3.5</version>
        </plugin>
      </plugins>
    </build>
</project>

db.properties

driver=com.mysql.jdbc.Driver
url=jdbc:mysql://localhost/mybaties?useUnicode=true&characterEncoding=utf-8
username=root
password=root123

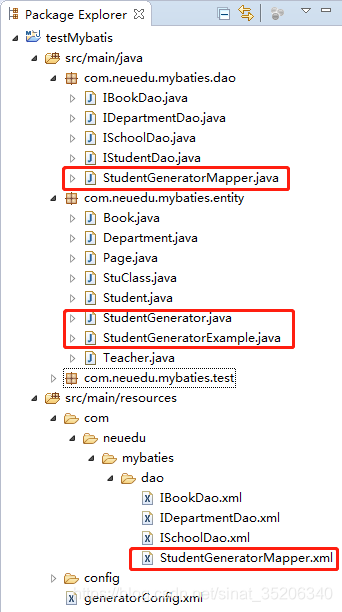

build成功之后生成的工程目录

在这里插入图片描述

StudentGeneratorMapper.java

package com.neuedu.mybaties.dao;

import com.neuedu.mybaties.entity.StudentGenerator;
import com.neuedu.mybaties.entity.StudentGeneratorExample;
import java.util.List;
import org.apache.ibatis.annotations.Param;

public interface StudentGeneratorMapper {
    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    long countByExample(StudentGeneratorExample example);

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    int deleteByExample(StudentGeneratorExample example);

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    int deleteByPrimaryKey(Integer stuno);

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    int insert(StudentGenerator record);

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    int insertSelective(StudentGenerator record);

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    List<StudentGenerator> selectByExample(StudentGeneratorExample example);

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    StudentGenerator selectByPrimaryKey(Integer stuno);

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    int updateByExampleSelective(@Param("record") StudentGenerator record, @Param("example") StudentGeneratorExample example);

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    int updateByExample(@Param("record") StudentGenerator record, @Param("example") StudentGeneratorExample example);

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    int updateByPrimaryKeySelective(StudentGenerator record);

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    int updateByPrimaryKey(StudentGenerator record);
}

StudentGenerator.java

package com.neuedu.mybaties.entity;

import java.util.Date;

public class StudentGenerator {
    /**
     *
     * This field was generated by MyBatis Generator.
     * This field corresponds to the database column student.stuno
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    private Integer stuno;

    /**
     *
     * This field was generated by MyBatis Generator.
     * This field corresponds to the database column student.stuname
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    private String stuname;

    /**
     *
     * This field was generated by MyBatis Generator.
     * This field corresponds to the database column student.gender
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    private String gender;

    /**
     *
     * This field was generated by MyBatis Generator.
     * This field corresponds to the database column student.birthday
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    private Date birthday;

    /**
     *
     * This field was generated by MyBatis Generator.
     * This field corresponds to the database column student.classno
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    private Integer classno;

    /**
     * This method was generated by MyBatis Generator.
     * This method returns the value of the database column student.stuno
     *
     * @return the value of student.stuno
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public Integer getStuno() {
        return stuno;
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method sets the value of the database column student.stuno
     *
     * @param stuno the value for student.stuno
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public void setStuno(Integer stuno) {
        this.stuno = stuno;
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method returns the value of the database column student.stuname
     *
     * @return the value of student.stuname
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public String getStuname() {
        return stuname;
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method sets the value of the database column student.stuname
     *
     * @param stuname the value for student.stuname
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public void setStuname(String stuname) {
        this.stuname = stuname == null ? null : stuname.trim();
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method returns the value of the database column student.gender
     *
     * @return the value of student.gender
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public String getGender() {
        return gender;
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method sets the value of the database column student.gender
     *
     * @param gender the value for student.gender
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public void setGender(String gender) {
        this.gender = gender == null ? null : gender.trim();
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method returns the value of the database column student.birthday
     *
     * @return the value of student.birthday
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public Date getBirthday() {
        return birthday;
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method sets the value of the database column student.birthday
     *
     * @param birthday the value for student.birthday
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public void setBirthday(Date birthday) {
        this.birthday = birthday;
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method returns the value of the database column student.classno
     *
     * @return the value of student.classno
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public Integer getClassno() {
        return classno;
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method sets the value of the database column student.classno
     *
     * @param classno the value for student.classno
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public void setClassno(Integer classno) {
        this.classno = classno;
    }
}

StudentGeneratorExample.java

package com.neuedu.mybaties.entity;

import java.util.ArrayList;
import java.util.Date;
import java.util.Iterator;
import java.util.List;

public class StudentGeneratorExample {
    /**
     * This field was generated by MyBatis Generator.
     * This field corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    protected String orderByClause;

    /**
     * This field was generated by MyBatis Generator.
     * This field corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    protected boolean distinct;

    /**
     * This field was generated by MyBatis Generator.
     * This field corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    protected List<Criteria> oredCriteria;

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public StudentGeneratorExample() {
        oredCriteria = new ArrayList<Criteria>();
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public void setOrderByClause(String orderByClause) {
        this.orderByClause = orderByClause;
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public String getOrderByClause() {
        return orderByClause;
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public void setDistinct(boolean distinct) {
        this.distinct = distinct;
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public boolean isDistinct() {
        return distinct;
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public List<Criteria> getOredCriteria() {
        return oredCriteria;
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public void or(Criteria criteria) {
        oredCriteria.add(criteria);
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public Criteria or() {
        Criteria criteria = createCriteriaInternal();
        oredCriteria.add(criteria);
        return criteria;
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public Criteria createCriteria() {
        Criteria criteria = createCriteriaInternal();
        if (oredCriteria.size() == 0) {
            oredCriteria.add(criteria);
        }
        return criteria;
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    protected Criteria createCriteriaInternal() {
        Criteria criteria = new Criteria();
        return criteria;
    }

    /**
     * This method was generated by MyBatis Generator.
     * This method corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public void clear() {
        oredCriteria.clear();
        orderByClause = null;
        distinct = false;
    }

    /**
     * This class was generated by MyBatis Generator.
     * This class corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    protected abstract static class GeneratedCriteria {
        protected List<Criterion> criteria;

        protected GeneratedCriteria() {
            super();
            criteria = new ArrayList<Criterion>();
        }

        public boolean isValid() {
            return criteria.size() > 0;
        }

        public List<Criterion> getAllCriteria() {
            return criteria;
        }

        public List<Criterion> getCriteria() {
            return criteria;
        }

        protected void addCriterion(String condition) {
            if (condition == null) {
                throw new RuntimeException("Value for condition cannot be null");
            }
            criteria.add(new Criterion(condition));
        }

        protected void addCriterion(String condition, Object value, String property) {
            if (value == null) {
                throw new RuntimeException("Value for " + property + " cannot be null");
            }
            criteria.add(new Criterion(condition, value));
        }

        protected void addCriterion(String condition, Object value1, Object value2, String property) {
            if (value1 == null || value2 == null) {
                throw new RuntimeException("Between values for " + property + " cannot be null");
            }
            criteria.add(new Criterion(condition, value1, value2));
        }

        protected void addCriterionForJDBCDate(String condition, Date value, String property) {
            if (value == null) {
                throw new RuntimeException("Value for " + property + " cannot be null");
            }
            addCriterion(condition, new java.sql.Date(value.getTime()), property);
        }

        protected void addCriterionForJDBCDate(String condition, List<Date> values, String property) {
            if (values == null || values.size() == 0) {
                throw new RuntimeException("Value list for " + property + " cannot be null or empty");
            }
            List<java.sql.Date> dateList = new ArrayList<java.sql.Date>();
            Iterator<Date> iter = values.iterator();
            while (iter.hasNext()) {
                dateList.add(new java.sql.Date(iter.next().getTime()));
            }
            addCriterion(condition, dateList, property);
        }

        protected void addCriterionForJDBCDate(String condition, Date value1, Date value2, String property) {
            if (value1 == null || value2 == null) {
                throw new RuntimeException("Between values for " + property + " cannot be null");
            }
            addCriterion(condition, new java.sql.Date(value1.getTime()), new java.sql.Date(value2.getTime()), property);
        }

        public Criteria andStunoIsNull() {
            addCriterion("stuno is null");
            return (Criteria) this;
        }

        public Criteria andStunoIsNotNull() {
            addCriterion("stuno is not null");
            return (Criteria) this;
        }

        public Criteria andStunoEqualTo(Integer value) {
            addCriterion("stuno =", value, "stuno");
            return (Criteria) this;
        }

        public Criteria andStunoNotEqualTo(Integer value) {
            addCriterion("stuno <>", value, "stuno");
            return (Criteria) this;
        }

        public Criteria andStunoGreaterThan(Integer value) {
            addCriterion("stuno >", value, "stuno");
            return (Criteria) this;
        }

        public Criteria andStunoGreaterThanOrEqualTo(Integer value) {
            addCriterion("stuno >=", value, "stuno");
            return (Criteria) this;
        }

        public Criteria andStunoLessThan(Integer value) {
            addCriterion("stuno <", value, "stuno");
            return (Criteria) this;
        }

        public Criteria andStunoLessThanOrEqualTo(Integer value) {
            addCriterion("stuno <=", value, "stuno");
            return (Criteria) this;
        }

        public Criteria andStunoIn(List<Integer> values) {
            addCriterion("stuno in", values, "stuno");
            return (Criteria) this;
        }

        public Criteria andStunoNotIn(List<Integer> values) {
            addCriterion("stuno not in", values, "stuno");
            return (Criteria) this;
        }

        public Criteria andStunoBetween(Integer value1, Integer value2) {
            addCriterion("stuno between", value1, value2, "stuno");
            return (Criteria) this;
        }

        public Criteria andStunoNotBetween(Integer value1, Integer value2) {
            addCriterion("stuno not between", value1, value2, "stuno");
            return (Criteria) this;
        }

        public Criteria andStunameIsNull() {
            addCriterion("stuname is null");
            return (Criteria) this;
        }

        public Criteria andStunameIsNotNull() {
            addCriterion("stuname is not null");
            return (Criteria) this;
        }

        public Criteria andStunameEqualTo(String value) {
            addCriterion("stuname =", value, "stuname");
            return (Criteria) this;
        }

        public Criteria andStunameNotEqualTo(String value) {
            addCriterion("stuname <>", value, "stuname");
            return (Criteria) this;
        }

        public Criteria andStunameGreaterThan(String value) {
            addCriterion("stuname >", value, "stuname");
            return (Criteria) this;
        }

        public Criteria andStunameGreaterThanOrEqualTo(String value) {
            addCriterion("stuname >=", value, "stuname");
            return (Criteria) this;
        }

        public Criteria andStunameLessThan(String value) {
            addCriterion("stuname <", value, "stuname");
            return (Criteria) this;
        }

        public Criteria andStunameLessThanOrEqualTo(String value) {
            addCriterion("stuname <=", value, "stuname");
            return (Criteria) this;
        }

        public Criteria andStunameLike(String value) {
            addCriterion("stuname like", value, "stuname");
            return (Criteria) this;
        }

        public Criteria andStunameNotLike(String value) {
            addCriterion("stuname not like", value, "stuname");
            return (Criteria) this;
        }

        public Criteria andStunameIn(List<String> values) {
            addCriterion("stuname in", values, "stuname");
            return (Criteria) this;
        }

        public Criteria andStunameNotIn(List<String> values) {
            addCriterion("stuname not in", values, "stuname");
            return (Criteria) this;
        }

        public Criteria andStunameBetween(String value1, String value2) {
            addCriterion("stuname between", value1, value2, "stuname");
            return (Criteria) this;
        }

        public Criteria andStunameNotBetween(String value1, String value2) {
            addCriterion("stuname not between", value1, value2, "stuname");
            return (Criteria) this;
        }

        public Criteria andGenderIsNull() {
            addCriterion("gender is null");
            return (Criteria) this;
        }

        public Criteria andGenderIsNotNull() {
            addCriterion("gender is not null");
            return (Criteria) this;
        }

        public Criteria andGenderEqualTo(String value) {
            addCriterion("gender =", value, "gender");
            return (Criteria) this;
        }

        public Criteria andGenderNotEqualTo(String value) {
            addCriterion("gender <>", value, "gender");
            return (Criteria) this;
        }

        public Criteria andGenderGreaterThan(String value) {
            addCriterion("gender >", value, "gender");
            return (Criteria) this;
        }

        public Criteria andGenderGreaterThanOrEqualTo(String value) {
            addCriterion("gender >=", value, "gender");
            return (Criteria) this;
        }

        public Criteria andGenderLessThan(String value) {
            addCriterion("gender <", value, "gender");
            return (Criteria) this;
        }

        public Criteria andGenderLessThanOrEqualTo(String value) {
            addCriterion("gender <=", value, "gender");
            return (Criteria) this;
        }

        public Criteria andGenderLike(String value) {
            addCriterion("gender like", value, "gender");
            return (Criteria) this;
        }

        public Criteria andGenderNotLike(String value) {
            addCriterion("gender not like", value, "gender");
            return (Criteria) this;
        }

        public Criteria andGenderIn(List<String> values) {
            addCriterion("gender in", values, "gender");
            return (Criteria) this;
        }

        public Criteria andGenderNotIn(List<String> values) {
            addCriterion("gender not in", values, "gender");
            return (Criteria) this;
        }

        public Criteria andGenderBetween(String value1, String value2) {
            addCriterion("gender between", value1, value2, "gender");
            return (Criteria) this;
        }

        public Criteria andGenderNotBetween(String value1, String value2) {
            addCriterion("gender not between", value1, value2, "gender");
            return (Criteria) this;
        }

        public Criteria andBirthdayIsNull() {
            addCriterion("birthday is null");
            return (Criteria) this;
        }

        public Criteria andBirthdayIsNotNull() {
            addCriterion("birthday is not null");
            return (Criteria) this;
        }

        public Criteria andBirthdayEqualTo(Date value) {
            addCriterionForJDBCDate("birthday =", value, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayNotEqualTo(Date value) {
            addCriterionForJDBCDate("birthday <>", value, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayGreaterThan(Date value) {
            addCriterionForJDBCDate("birthday >", value, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayGreaterThanOrEqualTo(Date value) {
            addCriterionForJDBCDate("birthday >=", value, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayLessThan(Date value) {
            addCriterionForJDBCDate("birthday <", value, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayLessThanOrEqualTo(Date value) {
            addCriterionForJDBCDate("birthday <=", value, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayIn(List<Date> values) {
            addCriterionForJDBCDate("birthday in", values, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayNotIn(List<Date> values) {
            addCriterionForJDBCDate("birthday not in", values, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayBetween(Date value1, Date value2) {
            addCriterionForJDBCDate("birthday between", value1, value2, "birthday");
            return (Criteria) this;
        }

        public Criteria andBirthdayNotBetween(Date value1, Date value2) {
            addCriterionForJDBCDate("birthday not between", value1, value2, "birthday");
            return (Criteria) this;
        }

        public Criteria andClassnoIsNull() {
            addCriterion("classno is null");
            return (Criteria) this;
        }

        public Criteria andClassnoIsNotNull() {
            addCriterion("classno is not null");
            return (Criteria) this;
        }

        public Criteria andClassnoEqualTo(Integer value) {
            addCriterion("classno =", value, "classno");
            return (Criteria) this;
        }

        public Criteria andClassnoNotEqualTo(Integer value) {
            addCriterion("classno <>", value, "classno");
            return (Criteria) this;
        }

        public Criteria andClassnoGreaterThan(Integer value) {
            addCriterion("classno >", value, "classno");
            return (Criteria) this;
        }

        public Criteria andClassnoGreaterThanOrEqualTo(Integer value) {
            addCriterion("classno >=", value, "classno");
            return (Criteria) this;
        }

        public Criteria andClassnoLessThan(Integer value) {
            addCriterion("classno <", value, "classno");
            return (Criteria) this;
        }

        public Criteria andClassnoLessThanOrEqualTo(Integer value) {
            addCriterion("classno <=", value, "classno");
            return (Criteria) this;
        }

        public Criteria andClassnoIn(List<Integer> values) {
            addCriterion("classno in", values, "classno");
            return (Criteria) this;
        }

        public Criteria andClassnoNotIn(List<Integer> values) {
            addCriterion("classno not in", values, "classno");
            return (Criteria) this;
        }

        public Criteria andClassnoBetween(Integer value1, Integer value2) {
            addCriterion("classno between", value1, value2, "classno");
            return (Criteria) this;
        }

        public Criteria andClassnoNotBetween(Integer value1, Integer value2) {
            addCriterion("classno not between", value1, value2, "classno");
            return (Criteria) this;
        }
    }

    /**
     * This class was generated by MyBatis Generator.
     * This class corresponds to the database table student
     *
     * @mbg.generated do_not_delete_during_merge Fri May 31 09:33:36 CST 2019
     */
    public static class Criteria extends GeneratedCriteria {

        protected Criteria() {
            super();
        }
    }

    /**
     * This class was generated by MyBatis Generator.
     * This class corresponds to the database table student
     *
     * @mbg.generated Fri May 31 09:33:36 CST 2019
     */
    public static class Criterion {
        private String condition;

        private Object value;

        private Object secondValue;

        private boolean noValue;

        private boolean singleValue;

        private boolean betweenValue;

        private boolean listValue;

        private String typeHandler;

        public String getCondition() {
            return condition;
        }

        public Object getValue() {
            return value;
        }

        public Object getSecondValue() {
            return secondValue;
        }

        public boolean isNoValue() {
            return noValue;
        }

        public boolean isSingleValue() {
            return singleValue;
        }

        public boolean isBetweenValue() {
            return betweenValue;
        }

        public boolean isListValue() {
            return listValue;
        }

        public String getTypeHandler() {
            return typeHandler;
        }

        protected Criterion(String condition) {
            super();
            this.condition = condition;
            this.typeHandler = null;
            this.noValue = true;
        }

        protected Criterion(String condition, Object value, String typeHandler) {
            super();
            this.condition = condition;
            this.value = value;
            this.typeHandler = typeHandler;
            if (value instanceof List<?>) {
                this.listValue = true;
            } else {
                this.singleValue = true;
            }
        }

        protected Criterion(String condition, Object value) {
            this(condition, value, null);
        }

        protected Criterion(String condition, Object value, Object secondValue, String typeHandler) {
            super();
            this.condition = condition;
            this.value = value;
            this.secondValue = secondValue;
            this.typeHandler = typeHandler;
            this.betweenValue = true;
        }

        protected Criterion(String condition, Object value, Object secondValue) {
            this(condition, value, secondValue, null);
        }
    }
}

StudentGeneratorMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.neuedu.mybaties.dao.StudentGeneratorMapper">
  <resultMap id="BaseResultMap" type="com.neuedu.mybaties.entity.StudentGenerator">
    <!--
      WARNING - @mbg.generated
      This element is automatically generated by MyBatis Generator, do not modify.
      This element was generated on Fri May 31 09:33:36 CST 2019.
    -->
    <id column="stuno" jdbcType="INTEGER" property="stuno" />
    <result column="stuname" jdbcType="VARCHAR" property="stuname" />
    <result column="gender" jdbcType="VARCHAR" property="gender" />
    <result column="birthday" jdbcType="DATE" property="birthday" />
    <result column="classno" jdbcType="INTEGER" property="classno" />
  </resultMap>
  <sql id="Example_Where_Clause">
    <!--
      WARNING - @mbg.generated
      This element is automatically generated by MyBatis Generator, do not modify.
      This element was generated on Fri May 31 09:33:36 CST 2019.
    -->
    <where>
      <foreach collection="oredCriteria" item="criteria" separator="or">
        <if test="criteria.valid">
          <trim prefix="(" prefixOverrides="and" suffix=")">
            <foreach collection="criteria.criteria" item="criterion">
              <choose>
                <when test="criterion.noValue">
                  and ${criterion.condition}
                </when>
                <when test="criterion.singleValue">
                  and ${criterion.condition} #{criterion.value}
                </when>
                <when test="criterion.betweenValue">
                  and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
                </when>
                <when test="criterion.listValue">
                  and ${criterion.condition}
                  <foreach close=")" collection="criterion.value" item="listItem" open="(" separator=",">
                    #{listItem}
                  </foreach>
                </when>
              </choose>
            </foreach>
          </trim>
        </if>
      </foreach>
    </where>
  </sql>
  <sql id="Update_By_Example_Where_Clause">
    <!--
      WARNING - @mbg.generated
      This element is automatically generated by MyBatis Generator, do not modify.
      This element was generated on Fri May 31 09:33:36 CST 2019.
    -->
    <where>
      <foreach collection="example.oredCriteria" item="criteria" separator="or">
        <if test="criteria.valid">
          <trim prefix="(" prefixOverrides="and" suffix=")">
            <foreach collection="criteria.criteria" item="criterion">
              <choose>
                <when test="criterion.noValue">
                  and ${criterion.condition}
                </when>
                <when test="criterion.singleValue">
                  and ${criterion.condition} #{criterion.value}
                </when>
                <when test="criterion.betweenValue">
                  and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
                </when>
                <when test="criterion.listValue">
                  and ${criterion.condition}
                  <foreach close=")" collection="criterion.value" item="listItem" open="(" separator=",">
                    #{listItem}
                  </foreach>
                </when>
              </choose>
            </foreach>
          </trim>
        </if>
      </foreach>
    </where>
  </sql>
  <sql id="Base_Column_List">
    <!--
      WARNING - @mbg.generated
      This element is automatically generated by MyBatis Generator, do not modify.
      This element was generated on Fri May 31 09:33:36 CST 2019.
    -->
    stuno, stuname, gender, birthday, classno
  </sql>
  <select id="selectByExample" parameterType="com.neuedu.mybaties.entity.StudentGeneratorExample" resultMap="BaseResultMap">
    <!--
      WARNING - @mbg.generated
      This element is automatically generated by MyBatis Generator, do not modify.
      This element was generated on Fri May 31 09:33:36 CST 2019.
    -->
    select
    <if test="distinct">
      distinct
    </if>
    <include refid="Base_Column_List" />
    from student
    <if test="_parameter != null">
      <include refid="Example_Where_Clause" />
    </if>
    <if test="orderByClause != null">
      order by ${orderByClause}
    </if>
  </select>
  <select id="selectByPrimaryKey" parameterType="java.lang.Integer" resultMap="BaseResultMap">
    <!--
      WARNING - @mbg.generated
      This element is automatically generated by MyBatis Generator, do not modify.
      This element was generated on Fri May 31 09:33:36 CST 2019.
    -->
    select
    <include refid="Base_Column_List" />
    from student
    where stuno = #{stuno,jdbcType=INTEGER}
  </select>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer">
    <!--
      WARNING - @mbg.generated
      This element is automatically generated by MyBatis Generator, do not modify.
      This element was generated on Fri May 31 09:33:36 CST 2019.
    -->
    delete from student
    where stuno = #{stuno,jdbcType=INTEGER}
  </delete>
  <delete id="deleteByExample" parameterType="com.neuedu.mybaties.entity.StudentGeneratorExample">
    <!--
      WARNING - @mbg.generated
      This element is automatically generated by MyBatis Generator, do not modify.
      This element was generated on Fri May 31 09:33:36 CST 2019.
    -->
    delete from student
    <if test="_parameter != null">
      <include refid="Example_Where_Clause" />
    </if>
  </delete>
  <insert id="insert" parameterType="com.neuedu.mybaties.entity.StudentGenerator">
    <!--
      WARNING - @mbg.generated
      This element is automatically generated by MyBatis Generator, do not modify.
      This element was generated on Fri May 31 09:33:36 CST 2019.
    -->
    insert into student (stuno, stuname, gender,
      birthday, classno)
    values (#{stuno,jdbcType=INTEGER}, #{stuname,jdbcType=VARCHAR}, #{gender,jdbcType=VARCHAR},
      #{birthday,jdbcType=DATE}, #{classno,jdbcType=INTEGER})
  </insert>
  <insert id="insertSelective" parameterType="com.neuedu.mybaties.entity.StudentGenerator">
    <!--
      WARNING - @mbg.generated
      This element is automatically generated by MyBatis Generator, do not modify.
      This element was generated on Fri May 31 09:33:36 CST 2019.
    -->
    insert into student
    <trim prefix="(" suffix=")" suffixOverrides=",">
      <if test="stuno != null">
        stuno,
      </if>
      <if test="stuname != null">
        stuname,
      </if>
      <if test="gender != null">
        gender,
      </if>
      <if test="birthday != null">
        birthday,
      </if>
      <if test="classno != null">
        classno,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides=",">
      <if test="stuno != null">
        #{stuno,jdbcType=INTEGER},
      </if>
      <if test="stuname != null">
        #{stuname,jdbcType=VARCHAR},
      </if>
      <if test="gender != null">
        #{gender,jdbcType=VARCHAR},
      </if>
      <if test="birthday != null">
        #{birthday,jdbcType=DATE},
      </if>
      <if test="classno != null">
        #{classno,jdbcType=INTEGER},
      </if>
    </trim>
  </insert>
  <select id="countByExample" parameterType="com.neuedu.mybaties.entity.StudentGeneratorExample" resultType="java.lang.Long">
    <!--
      WARNING - @mbg.generated
      This element is automatically generated by MyBatis Generator, do not modify.
      This element was generated on Fri May 31 09:33:36 CST 2019.
    -->
    select count(*) from student
    <if test="_parameter != null">
      <include refid="Example_Where_Clause" />
    </if>
  </select>
  <update id="updateByExampleSelective" parameterType="map">
    <!--
      WARNING - @mbg.generated
      This element is automatically generated by MyBatis Generator, do not modify.
      This element was generated on Fri May 31 09:33:36 CST 2019.
    -->
    update student
    <set>
      <if test="record.stuno != null">
        stuno = #{record.stuno,jdbcType=INTEGER},
      </if>
      <if test="record.stuname != null">
        stuname = #{record.stuname,jdbcType=VARCHAR},
      </if>
      <if test="record.gender != null">
        gender = #{record.gender,jdbcType=VARCHAR},
      </if>
      <if test="record.birthday != null">
        birthday = #{record.birthday,jdbcType=DATE},
      </if>
      <if test="record.classno != null">
        classno = #{record.classno,jdbcType=INTEGER},
      </if>
    </set>
    <if test="_parameter != null">
      <include refid="Update_By_Example_Where_Clause" />
    </if>
  </update>
  <update id="updateByExample" parameterType="map">
    <!--
      WARNING - @mbg.generated
      This element is automatically generated by MyBatis Generator, do not modify.
      This element was generated on Fri May 31 09:33:36 CST 2019.
    -->
    update student
    set stuno = #{record.stuno,jdbcType=INTEGER},
      stuname = #{record.stuname,jdbcType=VARCHAR},
      gender = #{record.gender,jdbcType=VARCHAR},
      birthday = #{record.birthday,jdbcType=DATE},
      classno = #{record.classno,jdbcType=INTEGER}
    <if test="_parameter != null">
      <include refid="Update_By_Example_Where_Clause" />
    </if>
  </update>
  <update id="updateByPrimaryKeySelective" parameterType="com.neuedu.mybaties.entity.StudentGenerator">
    <!--
      WARNING - @mbg.generated
      This element is automatically generated by MyBatis Generator, do not modify.
      This element was generated on Fri May 31 09:33:36 CST 2019.
    -->
    update student
    <set>
      <if test="stuname != null">
        stuname = #{stuname,jdbcType=VARCHAR},
      </if>
      <if test="gender != null">
        gender = #{gender,jdbcType=VARCHAR},
      </if>
      <if test="birthday != null">
        birthday = #{birthday,jdbcType=DATE},
      </if>
      <if test="classno != null">
        classno = #{classno,jdbcType=INTEGER},
      </if>
    </set>
    where stuno = #{stuno,jdbcType=INTEGER}
  </update>
  <update id="updateByPrimaryKey" parameterType="com.neuedu.mybaties.entity.StudentGenerator">
    <!--
      WARNING - @mbg.generated
      This element is automatically generated by MyBatis Generator, do not modify.
      This element was generated on Fri May 31 09:33:36 CST 2019.
    -->
    update student
    set stuname = #{stuname,jdbcType=VARCHAR},
      gender = #{gender,jdbcType=VARCHAR},
      birthday = #{birthday,jdbcType=DATE},
      classno = #{classno,jdbcType=INTEGER}
    where stuno = #{stuno,jdbcType=INTEGER}
  </update>
</mapper>
