动态路由实验----RIP的基本配置

a9c73f714a060.png#pic_center)

动态路由实验----RIP的基本配置

实验步骤

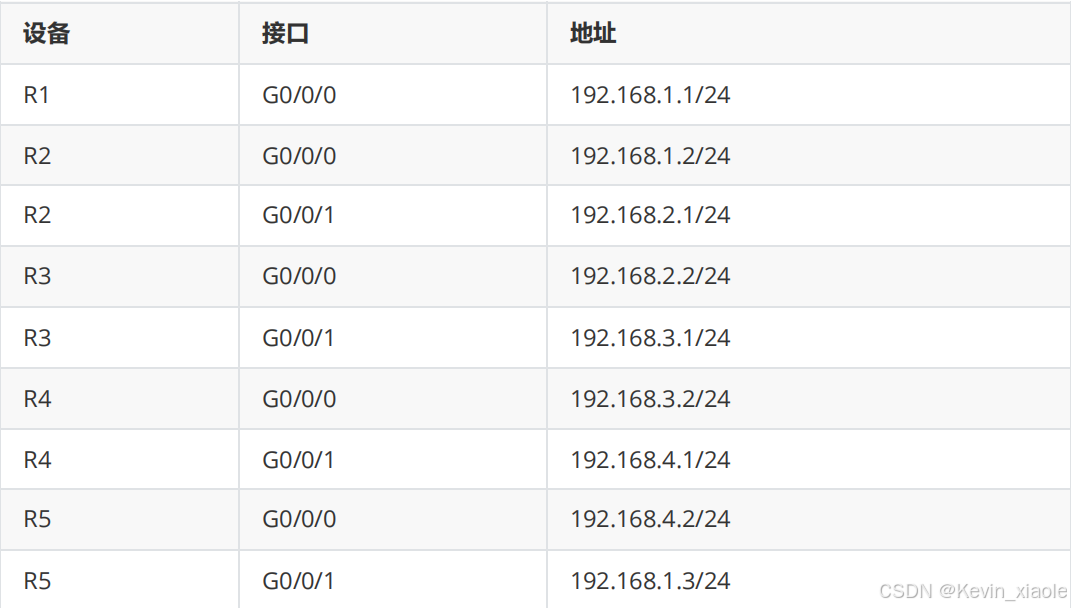

第一步：地址规划

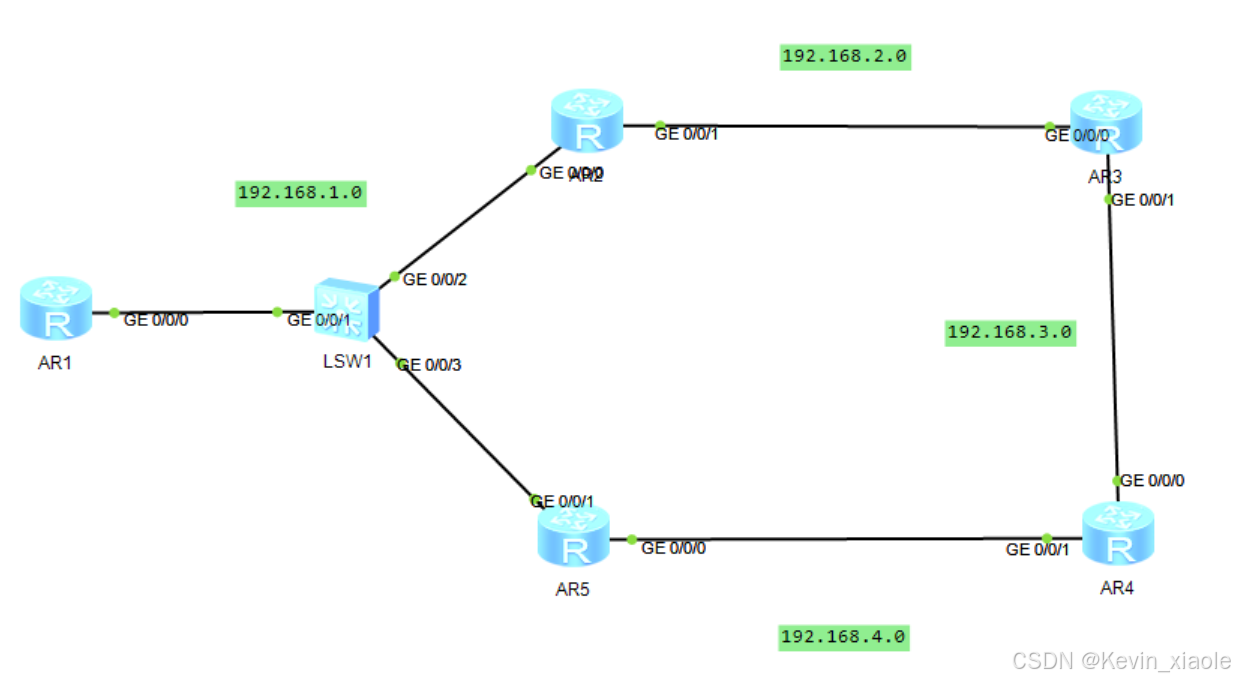

拓扑图如下：

第二步：配置设备

1. R1地址配置

   [R1]interface g0/0/0
   [R1-GigabitEthernet0/0/0]ip ad
   [R1-GigabitEthernet0/0/0]ip address 192.168.1.1 24


2. R2地址配置

   [R2]interface g0/0/0
   [R2-GigabitEthernet0/0/0]ip ad
   [R2-GigabitEthernet0/0/0]ip address 192.168.1.2 24
   [R2]interface g0/0/1
   [R2-GigabitEthernet0/0/1]ip ad
   [R2-GigabitEthernet0/0/1]ip address 192.168.2.1 24


3. R3地址配置

   [R3]interface g0/0/0
   [R3-GigabitEthernet0/0/0]ip ad
   [R3-GigabitEthernet0/0/0]ip address 192.168.2.2 24
   [R3]interface g0/0/1
   [R3-GigabitEthernet0/0/1]ip ad
   [R3-GigabitEthernet0/0/1]ip address 192.168.3.1 24


4. R4地址配置

   [R4]interface g0/0/0
   [R4-GigabitEthernet0/0/0]ip ad
   [R4-GigabitEthernet0/0/0]ip address 192.168.3.2 24
   [R4-GigabitEthernet0/0/1]ip ad
   [R4-GigabitEthernet0/0/1]ip address 192.168.4.1 24


5. R5地址配置

   [R5]interface g0/0/0
   [R5-GigabitEthernet0/0/0]ip ad
   [R5-GigabitEthernet0/0/0]ip address 192.168.4.2 24
   [R5]interface g0/0/1
   [R5-GigabitEthernet0/0/1]ip ad
   [R5-GigabitEthernet0/0/1]ip address 192.168.1.3 24


   第三步：测试直连设备间通讯

   R1与R2和R5间通讯

   <R1>ping 192.168.1.2
   PING 192.168.1.2: 56 data bytes, press CTRL_C to break
   Reply from 192.168.1.2: bytes=56 Sequence=1 ttl=255 time=550 ms
   Reply from 192.168.1.2: bytes=56 Sequence=2 ttl=255 time=100 ms
   Reply from 192.168.1.2: bytes=56 Sequence=3 ttl=255 time=70 ms
   Reply from 192.168.1.2: bytes=56 Sequence=4 ttl=255 time=60 ms
   Reply fro
