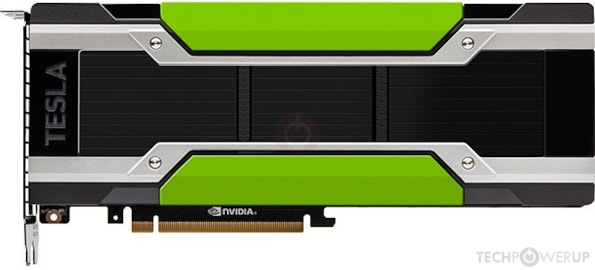

NVIDIA Tesla P40
- Graphics Processor
- GP102
- Cores
- 3840
- TMUs
- 240
- ROPs
- 96
- Memory Size
- 24 GB
- Memory Type
- GDDR5
- Bus Width
- 384 bit
GPU
The Tesla P40 was a data center GPU by NVIDIA, launched on September 13th, 2016. Built on the 16 nm process, and based on the GP102 graphics processor, the GPU supports DirectX 12. The GP102 graphics processor is a large chip with a die area of 471 mm² and 11.8 billion transistors. It features 3840 shading units, 240 texture mapping units, and 96 ROPs. NVIDIA has paired 24 GB GDDR5 memory with the Tesla P40, which is connected using a 384-bit memory interface. The GPU is operating at a frequency of 1303 MHz, which can be boosted up to 1531 MHz, memory is running at 1808 MHz (7.2 Gbps effective).
Being a dual-slot card, the NVIDIA Tesla P40 draws power from an 8-pin EPS power connector, with power draw rated at 250 W maximum. This card has no display connectivity, as it is not designed to have monitors connected to it. Tesla P40 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card a dual-slot cooling solution. Its price at launch was 5,699 US Dollars.
Being a dual-slot card, the NVIDIA Tesla P40 draws power from an 8-pin EPS power connector, with power draw rated at 250 W maximum. This card has no display connectivity, as it is not designed to have monitors connected to it. Tesla P40 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card a dual-slot cooling solution. Its price at launch was 5,699 US Dollars.
Graphics Processor
Graphics Card
- Release Date
- Sep 13th, 2016
- Generation
-
Tesla Pascal
(Pxx)
- Predecessor
- Tesla Maxwell
- Successor
- Tesla Volta
- Production
- End-of-life
- Driver Support
- Legacy
- Launch Price
- 5,699 USD
- Bus Interface
- PCIe 3.0 x16
Relative Performance
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for RTX 3080 and faster.
Performance estimated based on architecture, shader count and clocks.
Clock Speeds
- Base Clock
- 1303 MHz
- Boost Clock
- 1531 MHz
- Memory Clock
-
1808 MHz
7.2 Gbps effective
Memory
- Memory Size
- 24 GB
- Memory Type
- GDDR5
- Memory Bus
- 384 bit
- Bandwidth
- 347.1 GB/s
Render Config
- Shading Units
- 3840
- TMUs
- 240
- ROPs
- 96
- SM Count
- 30
- L1 Cache
- 48 KB (per SM)
- L2 Cache
- 3 MB
Theoretical Performance
- Pixel Rate
- 147.0 GPixel/s
- Texture Rate
- 367.4 GTexel/s
- FP16
- 183.7 GFLOPS (1:64)
- FP32
- 11.76 TFLOPS
- FP64
- 367.4 GFLOPS (1:32)
Numeric Format Support
- Vector
-
INT4INT8INT16INT32FP16BF16FP32FP64
- Matrix
- Not Supported
Board Design
- Slot Width
- Dual-slot
- Length
- 267 mm
10.5 inches
- Height
- 111 mm
4.4 inches
- TDP
- 250 W
- Suggested PSU
- 600 W
- Outputs
- No outputs
- Power Connectors
- 8-pin EPS
- Board Number
- PG610 SKU 200
Graphics Features
- DirectX
- 12 (12_1)
- OpenGL
- 4.6
- OpenCL
- 3.0
- Vulkan
- 1.4
- CUDA
- 6.1
- Shader Model
- 6.8
GP102 GPU Notes
| Super Resolution: FSR 3.1.5, XeSS 3 Frame Generation: FSR 3.1.6, XeSS 3 Ray Reconstruction: No Support NVENC: 6th Gen NVDEC: 3rd Gen PureVideo HD: VP8 VDPAU: Feature Set H Latest Supported Drivers: Windows 7 / 8 / 8.1 (x32 / x64): GeForce Release 391.35 / 474.89 Quadro Release R390 U9 (392.37) / R440 U4 (441.66) Data Center Release 427.11 Windows 10 / 11 (x32 / x64): GeForce Release 391.35 / 582.78 Quadro Release R390 U9 (392.37) / R580 U11 (582.78) Data Center Release 582.78 Windows Server 2016 / 2019: Data Center Release 529.19 / 539.72 Windows Server 2022 / 2025: Data Center Release 582.78 Linux (X32 / X64): GeForce Release 390.157 / 580.178.04 Quadro Release R390 (390.157) / R580 (580.178.04) Data Center Release 580.178.04 |
