Diffused Ray Tracing: A P recursor to Global Illumination Challenges (1993)
Author: Masao Takakuwa
Originally Published: NICOGRAPH 1993 (Japan)
Restoration Note: This section, originally featured in Noriko Kurachi's CG Magic, was omitted from the US edition. We present this translation to highlight a "missing link" in rendering history—a method that anticipated the flaws of light-path tracing years before they became mainstream.
1. Pre-dating Photon Mapping: A Visionary Alternative
While Photon Mapping (Jensen, 1996) later became the industry standard for caustics, it introduced a persistent struggle with "photon noise" and the necessity of density estimation (blurring) to achieve smooth results.
Three years before Jensen’s seminal work, Takakuwa’s Diffused Ray Tracing (1993) proposed a fundamentally different path. It recognized that tracing rays from a light source—while physically intuitive—leads to sampling diffusion and "splotchy" artifacts that require heavy post-processing. To solve this, Takakuwa sought a purely deterministic, eye-path-only solution for both global illumination and caustics.
2. The Core Innovation: Caustics without Light-Source Rays

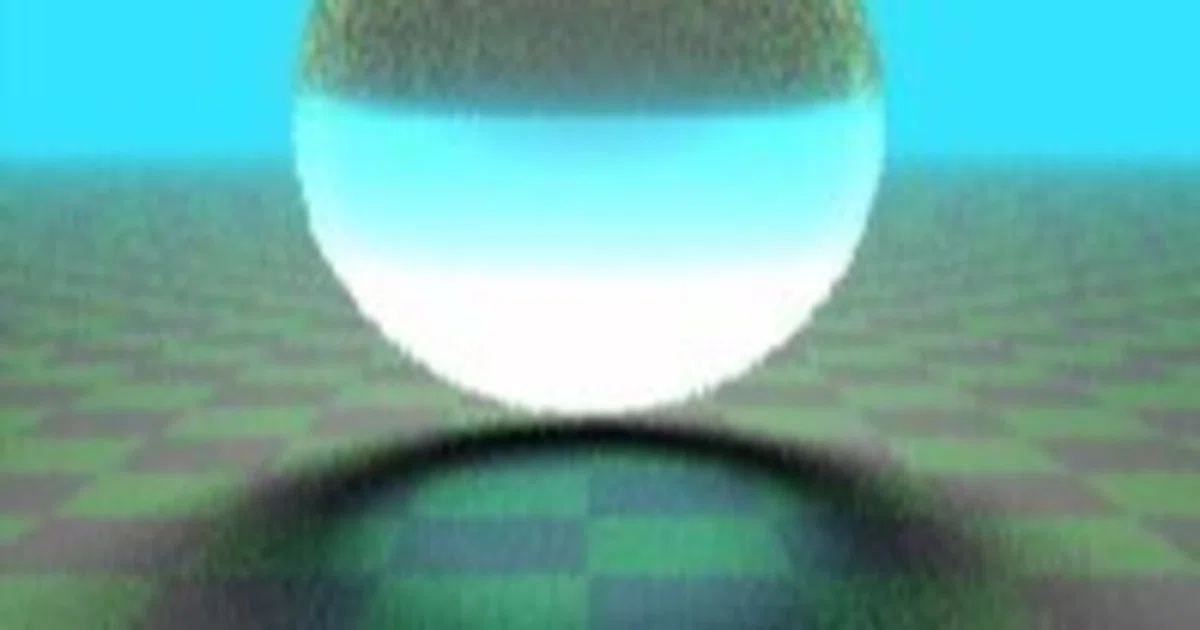

The hallmark of Takakuwa’s method is achieving refractive caustics (lens effects) using only eye-path traversal (point-sampling).
2.1 Bypassing the "Diffusion" Problem
In methods that trace rays from a light source, rays inevitably scatter into empty space. Without a massive number of photons and sophisticated noise reduction (denoising), the resulting image remains unusable.
Takakuwa’s method ensures every calculated ray contributes directly to a visible pixel. By extending the eye-ray through refractive interfaces and employing a specialized "Virtual Screen" sampling toward the light source, he captured concentrated light—caustics—purely from the observer's perspective.
2.2 The "Virtual Screen" Implementation
Rather than waiting for photons to hit a surface, this method defines a square pixel grid centered on the shaded point
. For global diffuse reflection (Radiosity), the intensity
is sampled across a 180-degree field of view:
This allowed for soft, natural shadows and light bleeding without the memory overhead or stochastic noise of light-source-based maps.
3. Why This "Lost Chapter" Matters

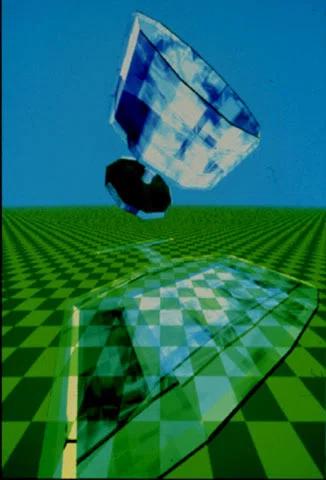

The US publisher's decision to excise this chapter, labeling it a "local Japanese report," overlooked a critical technical milestone. Takakuwa demonstrated that the observer's perspective is sufficient to resolve even the most complex light interactions—such as the "glowing shadows" beneath a wine glass.
By avoiding light-source ray tracing, this method offered:
Zero Sampling Noise: No random scattering from light sources means no "salt and pepper" noise.
No Post-Process Blurring: Results are crisp and clean immediately, without needing density estimation.
Deterministic Clarity: A mathematical elegance that predates the bi-directional and Metropolis light transport methods that later dominated the field.
4. Conclusion
In 1993, Takakuwa provided a blueprint for global illumination that prioritized sampling efficiency and image clarity over the chaotic diffusion of light-source rays. Reclaiming this work is not just about history; it is a reminder that the most elegant solutions often lie in looking at the problem from a different direction—literally, from the eye of the beholder.
Originally featured in: CG Magic by Noriko Kurachi (Japanese Edition)
Proceedings: NICOGRAPH 1993
