[serdnab]

Closes #3724

When creating a note from midi origin, it now sets the position as the current playing position.
If piano roll is recording, it records the value of the instrument pitch wheel in the detune pattern of the current recording midi note.
When finishing recording of a note, it sets the detune pattern of the new note with the detune pattern of the midi note.
I extended the detune pattern range to 60 semitones, since that is the pitch wheel max range.

[LmmsBot]

🤖 Hey, I'm @LmmsBot from github.com/lmms/bot and I made downloads for this pull request, click me to make them magically appear! 🎩

Windows

• Windows 32-bit: lmms-1.3.0-alpha.1.169%2Bg022b6f46f-mingw-win32.exe (build link)
• Windows 64-bit: lmms-1.3.0-alpha.1.169%2Bg022b6f46f-mingw-win64.exe (build link)
• Windows 32-bit: lmms-1.3.0-alpha-msvc2017-win32.exe (build link)
• Windows 64-bit: lmms-1.3.0-alpha-msvc2017-win64.exe (build link)

Linux

• Linux (AppImage): lmms-1.3.0-alpha.1.169%2Bg022b6f46f-linux-x86_64.AppImage (build link)

macOS

• macOS : lmms-1.3.0-alpha.1.169%2Bg022b6f46f-mac10.14.dmg (build link)

🤖

{"platform_name_to_artifacts": {"Windows": [{"artifact": {"title": {"title": "32-bit", "platform_name": "Windows"}, "link": {"link": "https://15651-15778896-gh.circle-artifacts.com/0/lmms-1.3.0-alpha.1.169%2Bg022b6f46f-mingw-win32.exe"}}, "build_link": "https://circleci.com/gh/LMMS/lmms/15651?utm_campaign=vcs-integration-link&utm_medium=referral&utm_source=github-build-link"}, {"artifact": {"title": {"title": "64-bit", "platform_name": "Windows"}, "link": {"link": "https://15648-15778896-gh.circle-artifacts.com/0/lmms-1.3.0-alpha.1.169%2Bg022b6f46f-mingw-win64.exe"}}, "build_link": "https://circleci.com/gh/LMMS/lmms/15648?utm_campaign=vcs-integration-link&utm_medium=referral&utm_source=github-build-link"}, {"artifact": {"title": {"title": "32-bit", "platform_name": "Windows"}, "link": {"link": "https://ci.appveyor.com/api/buildjobs/syqq3r1k8us3il71/artifacts/build/lmms-1.3.0-alpha-msvc2017-win32.exe"}}, "build_link": "https://ci.appveyor.com/project/Lukas-W/lmms/builds/42472657"}, {"artifact": {"title": {"title": "64-bit", "platform_name": "Windows"}, "link": {"link": "https://ci.appveyor.com/api/buildjobs/e02f5li9odwkd4l9/artifacts/build/lmms-1.3.0-alpha-msvc2017-win64.exe"}}, "build_link": "https://ci.appveyor.com/project/Lukas-W/lmms/builds/42472657"}], "Linux": [{"artifact": {"title": {"title": "(AppImage)", "platform_name": "Linux"}, "link": {"link": "https://15650-15778896-gh.circle-artifacts.com/0/lmms-1.3.0-alpha.1.169%2Bg022b6f46f-linux-x86_64.AppImage"}}, "build_link": "https://circleci.com/gh/LMMS/lmms/15650?utm_campaign=vcs-integration-link&utm_medium=referral&utm_source=github-build-link"}], "macOS": [{"artifact": {"title": {"title": "", "platform_name": "macOS"}, "link": {"link": "https://15652-15778896-gh.circle-artifacts.com/0/lmms-1.3.0-alpha.1.169%2Bg022b6f46f-mac10.14.dmg"}}, "build_link": "https://circleci.com/gh/LMMS/lmms/15652?utm_campaign=vcs-integration-link&utm_medium=referral&utm_source=github-build-link"}]}, "commit_sha": "2813ee29f49a909c31a0d415e060a06c197bc72b"}

[RiedleroD]

Could this be expanded to take pitch automation from midi import as well? Would drastically decrease the amount of automation tracks I'd have to carry over, so that'd be very helpful to me.

[allejok96]

@serdnab this is awesome! Works like a charm. Just a few things: a detune pattern with a single point is now created for every note even if the pitch wheel is untouched. This will eat memory. And the detune "sample rate" is far too low if you want to do vibrato. (One point per beat?) No reason to hold back on that one, since it will only be used occasionally in a song.

[allejok96]

(I think this is another problem, but I'm curious) @RiedleroD can you explain the process you are currently going through when you are carrying over automation for an imported midi file?

[RiedleroD]

@allejok96 well if there's lots of pitch automation I leave it as it is (too much work), but sometimes there's just one or two pitchbends which I just approximately recreate using note bending to declutter the project. Most of the time though, there's lots of pitch automation tracks with a single pitchbend to 0 - which are really annoying, but also really easy to remove in a separate PR I guess.

If you'd integrate pitch automation from midi import into note bending, all of that work would just disappear. Plus I'd have even cleaner files than before. Though yeah, it's probably better in a separate PR. Should I create a feature request for this?

[serdnab]

a detune pattern with a single point is now created for every note even if the pitch wheel is untouched

This is a separate bug, as it happens always you create a note, even if you don't record.

the detune "sample rate" is far too low

If you open the detune editor and you change the quantization before recording any notes, you can increase the "sample rate".

Should I create a feature request for this?

Yes, please, as that would require some work.

[allejok96]

open the detune editor and you change the quantization

A bit obscure but it makes sense when you know it.

it happens always you create a note, even if you don't record

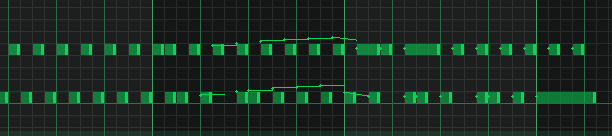

It's not what you think, but you are right - it is an existing bug. Here you see the problem in action. It starts as soon as I touch the pitch wheel, and then it never stops until LMMS is restarted. But it only affects midi input.

The bug is because the controller recording stores a "raw" float without any rounding or quantization. Look here, this shouldn't even be possible to create:

This lack of rounding causes the bug in the first image, because my pitch wheel settles on 0.0000610352 which is just a ridiculous precision. The bug doesn't cause any problems atm, but this PR brought it to light. I'll file a new issue.

[allejok96]

Adding this in InstrumentTrack::InstrumentTrack() will solve my problem. It will restrict the pitch knob to whole cents.

m_pitchModel.setStrictStepSize(true);

Since the problem arises with this PR I think it makes sense to fix it here.

[serdnab]

Since the problem arises with this PR I think it makes sense to fix it here.

I will commit it.

[serdnab]

Requested changes addressed.
I looked for another way to check if the piano roll is recording, but I didn't find it.
If you have any ideas?

[Veratil]

Requested changes addressed. I looked for another way to check if the piano roll is recording, but I didn't find it. If you have any ideas?

It'll require some re-architecting later, but for now this is fine. It's a good enhancement. 👍

[Veratil]

@serdnab can you rebase and fix the conflicts? We can merge after that.

[zonkmachine]

@serdnab @Veratil I'm having a go at updating this to latest master. Stand by... 🕺

[zonkmachine]

@serdnab @Veratil I think I've managed to update the PR and you can always revert to 2813ee2
The build no longer works and fails on a GuiApplication related issue. It looks to me like that is due to changes on master since the last commit before I touched it.

[  0%] Building CXX object src/CMakeFiles/lmmsobjs.dir/tracks/InstrumentTrack.cpp.o
/builds/lmms/src/tracks/InstrumentTrack.cpp: In member function ‘virtual bool lmms::InstrumentTrack::play(const lmms::TimePos&, lmms::fpp_t, lmms::f_cnt_t, int)’:
/builds/lmms/src/tracks/InstrumentTrack.cpp:717:77: error: ‘GuiApplication’ has not been declared
  717 |                 processHandle->processTimePos(_start, m_pitchModel.value(), GuiApplication::instance()->pianoRoll()->isRecording());
      |                                                                             ^~~~~~~~~~~~~~
make[2]: *** [src/CMakeFiles/lmmsobjs.dir/build.make:3361: src/CMakeFiles/lmmsobjs.dir/tracks/InstrumentTrack.cpp.o] Error 1
make[1]: *** [CMakeFiles/Makefile2:2136: src/CMakeFiles/lmmsobjs.dir/all] Error 2
make: *** [Makefile:156: all] Error 2

[zonkmachine]

Above issue fixed. We all bow deeply to @sakertooth

Tested: We got pitch bend on record. Damn!
All hail @serdnab!
