软件环境

1、操作系统：CentOS Linux release 7.9.2009(Core) -- 阿里服务器上选的CentOS镜像

说明：

Alibaba Cloud Linux 4 LTS 64位的操作系统与TDengine的兼容性会差一些，作者已经试过了

2、TDengine 3.3.6.13 TDengine3.3.6.13官方下载地址

安装步骤

第一步：下载TDengine RPM安装包（开源版本）

https://www.taosdata.com/assets-download/3.0/TDengine-server-3.3.6.13-Linux-x64.rpm

TDengine下载中心：

https://www.taosdata.com/download-center?product=TDengine+TSDB-OSS&version=3.3.6.13&platform=Linux-Generic&architecture=x64

说明：

OSS 是 “Open Source Software”（开源软件）的缩写
TDengine IDMP 是一款涛思数据上线的 AI 原生的工业数据管理平台
TDengine Historian：IDMP + TSDB + TDgpt 一体化安装包，提供物联网和工业数据管理、时序存储与 AI 智能分析的统一部署方案

第二步：安装/更新依赖包

直接执行即可，省去不少麻烦

# 安装基础依赖
yum install -y glibc-langpack-en nss curl openssl libuuid-devel
# 安装开发工具（修复依赖问题）
yum groupinstall -y "Development Tools"

 检查 glibc 版本（要求 >= 2.17）
ldd --version | head -1

# 更新 glibc（如果版本过低）
yum update -y glibc

第三步：设置locale

### 检查当前系统 locale 配置
locale -a  # 查看已安装的locale
locale     # 查看当前locale设置

## 设置locale为en_US.UTF-8
localedef -i en_US -f UTF-8 en_US.UTF-8

### 验证 locale 是否生效
locale -a | grep en_US.UTF-8

第四步：安装TDengine

# 执行安装
rpm -ivh TDengine-server-3.3.6.13-Linux-x64.rpm

Enter FQDN:port → 直接回车（单机部署）
Enter email address → 直接回车跳过

第五步：配置taos.cfg

########################################################
#                                                      #
#                  Configuration                       #
#                                                      #
########################################################

######### 0. Client only configurations #############

# The interval for CLI to send heartbeat to mnode
# shellActivityTimer        3


############### 1. Cluster End point ############################

# The end point of the first dnode in the cluster to be connected to when this dnode or the CLI utility is started
firstEp                   172.30.102.177:6030

# The end point of the second dnode to be connected to if thefirstEp 6041
# secondEp


############### 2. Configuration Parameters of current dnode #####

# The FQDN of the host on which this dnode will be started. It can be IP address
fqdn                      172.30.102.177

# The port for external access after this dnode is started
serverPort                6030

# The maximum number of connections a dnode can accept
maxShellConns             5000

# The directory for writing log files, if you are using Windows platform please change to Windows path
logDir                    /var/log/taos

# All data files are stored in this directory, if you are using Windows platform please change to Windows path
dataDir                   /var/lib/taos

# temporary file's directory, if you are using Windows platform please change to Windows path
tempDir                   /tmp/

# Switch for allowing to collect and report service usage information
telemetryReporting        1

# Switch for allowing to collect and report crash information
crashReporting            1

# The maximum number of vnodes supported by this dnode
supportVnodes             9

# The interval of this dnode reporting status to mnode, [1..10] seconds
statusInterval            3

# The minimum sliding window time, milli-second
minSlidingTime            50

# The minimum time window, milli-second
minIntervalTime           50

# The maximum allowed query buffer size in MB during query processing for each data node
# -1 no limit (default)
# 0  no query allowed, queries are disabled
queryBufferSize           16

# The compressed rpc message, option:
#  -1 (no compression)
#   0 (all message compressed),
# > 0 (rpc message body which larger than this value will be compressed)
compressMsgSize           128000

# query retrieved column data compression option:
#  -1 (no compression)
#   0 (all retrieved column data compressed),
# > 0 (any retrieved column size greater than this value all data will be compressed.)
compressColData           12800

# system time zone
timezone                  UTC-8

# system time zone (for windows 10)
# timezone              Asia/Shanghai (CST, +0800)

# system locale
locale                    en_US.UTF-8

# system charset
charset                   UTF-8

# stop writing logs when the disk size of the log folder is less than this value
minimalLogDirGB           5.0

# stop writing temporary files when the disk size of the tmp folder is less than this value
minimalTmpDirGB           5.0

# if free disk space is less than this value, this dnode will fail to start
minimalDataDirGB          5.0

# enable/disable system monitor
monitor                   1


# The following parameter is used to limit the maximum number of lines in log files.
# max number of lines per log filters
numOfLogLines             10000000

# write log in async way: 1 - async, 0 - sync
asyncLog                  1

# time period of keeping log files, in days
logKeepDays               3


############ 3. Debug Flag and levels #############################################

# The following parameters are used for debug purpose only by this dnode.
# debugFlag is a 8 bits mask: FILE-SCREEN-UNUSED-HeartBeat-DUMP-TRACE_WARN-ERROR
# Available debug levels are:
# 131: output warning and error
# 135: output debug, warning and error
# 143: output trace, debug, warning and error to log
# 199: output debug, warning and error to both screen and file
# 207: output trace, debug, warning and error to both screen and file

# debug flag for all log type, take effect when non-zero value
debugFlag                 0

# debug flag for timer
tmrDebugFlag              131

# debug flag for util
uDebugFlag                131

# debug flag for rpc
rpcDebugFlag              131

# debug flag for jni
jniDebugFlag              131

# debug flag for query
qDebugFlag                131

# debug flag for client driver
cDebugFlag                131

# debug flag for dnode messages
dDebugFlag                135

# debug flag for vnode
vDebugFlag                131

# debug flag for meta management messages
mDebugFlag                135

# debug flag for wal
wDebugFlag                135

# debug flag for sync module
sDebugFlag                135

# debug flag for tsdb
tsdbDebugFlag             131

# debug flag for tq
tqDebugFlag               131

# debug flag for fs
fsDebugFlag               131

# debug flag for udf
udfDebugFlag              131

# debug flag for sma
smaDebugFlag              131

# debug flag for index
idxDebugFlag              131

# debug flag for tdb
tdbDebugFlag              131

# debug flag for meta
metaDebugFlag             131

# generate core file when service crash
enableCoreFile            1

# force the use of parameters from the configuration file
forceReadConfig           1

核心配置说明：

1、ip使用内部ip（不要使用外网IP，这是新手容易犯错的地方）

2、dataDir /var/lib/taos # 数据目录

3、tempDir /tmp/ # 临时文件目录

4、supportVnodes 9 # 可以使用cpu核心数*2，有的配 CPU*2+5，大家随意

5、forceReadConfig 1 # 这个很重要，反正作者使用默认值0时，死活都读不到配置（因为show dnodes 显示可用的Vnodes为0，改为1后supportVnodes的9就生效了）

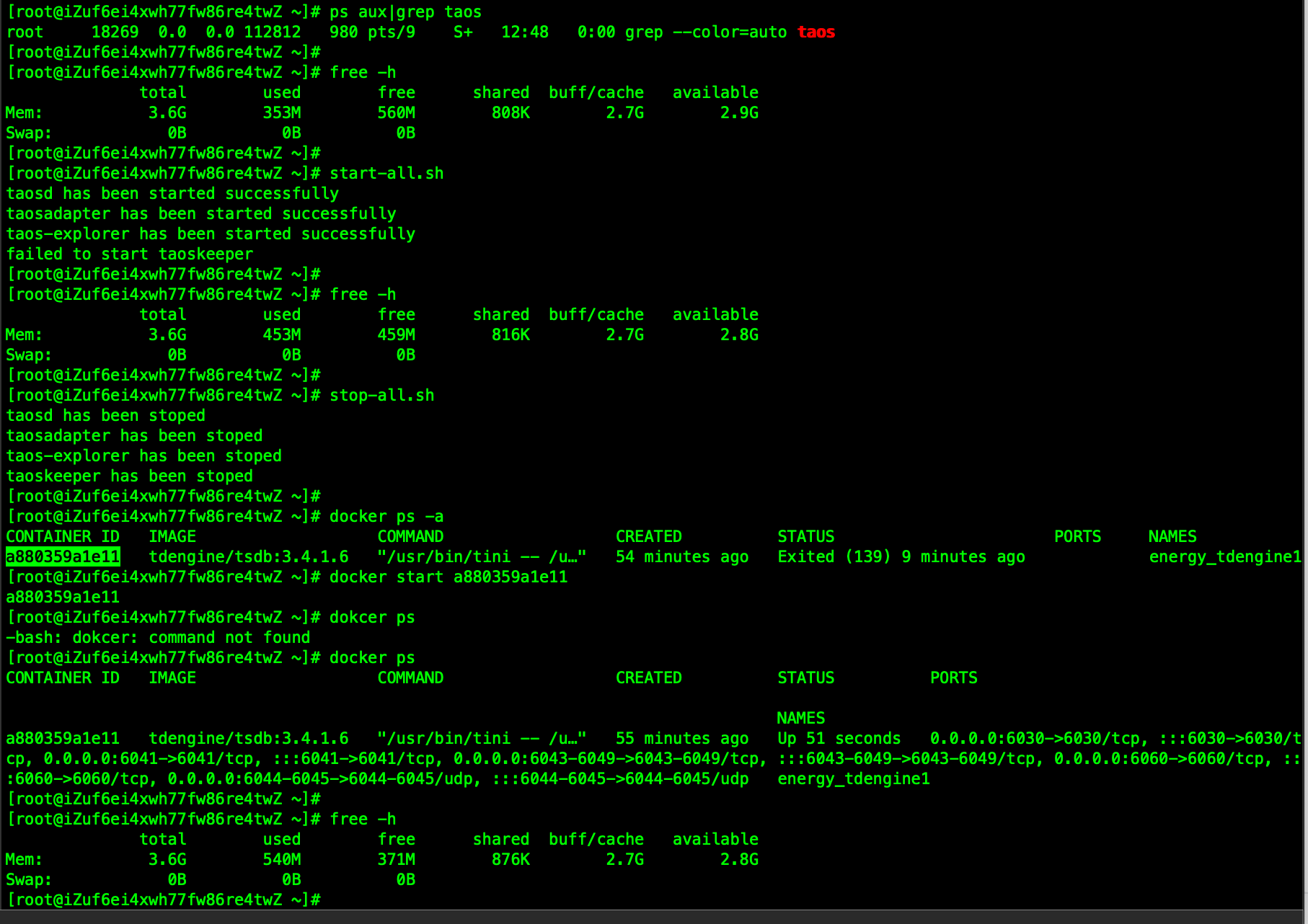

服务启动

rpm包安装完下面的命令默认在环境变量中

start-all.sh

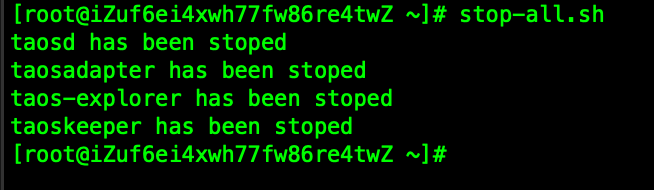

服务停止

stop-all.sh

命令行使用

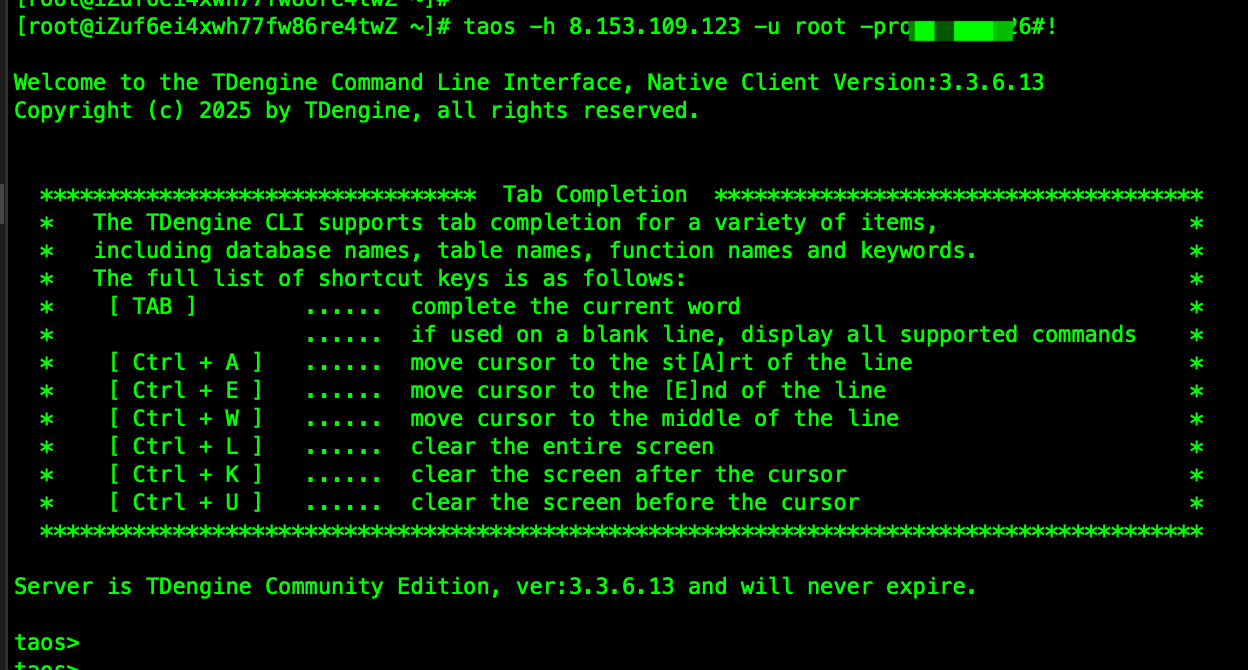

登陆

taos -h 8.153.109.123 -u root -proo*****#!

创建数据库

CREATE DATABASE energydb
  KEEP 365
  PAGES 256
  PAGESIZE 16
  COMP 2
  DURATION 1
  REPLICA 1;

创建用户及授权

-- 1. 为不同角色创建专用用户
CREATE USER monitor PASS 'monitorM***2026#';      -- 监控用户
CREATE USER app_user PASS 'energyM***2026#';      -- 应用程序用户
CREATE USER analyst PASS 'analyst***2026#';      -- 数据分析用户

GRANT READ, WRITE ON energydb TO app_user;

图形客户端

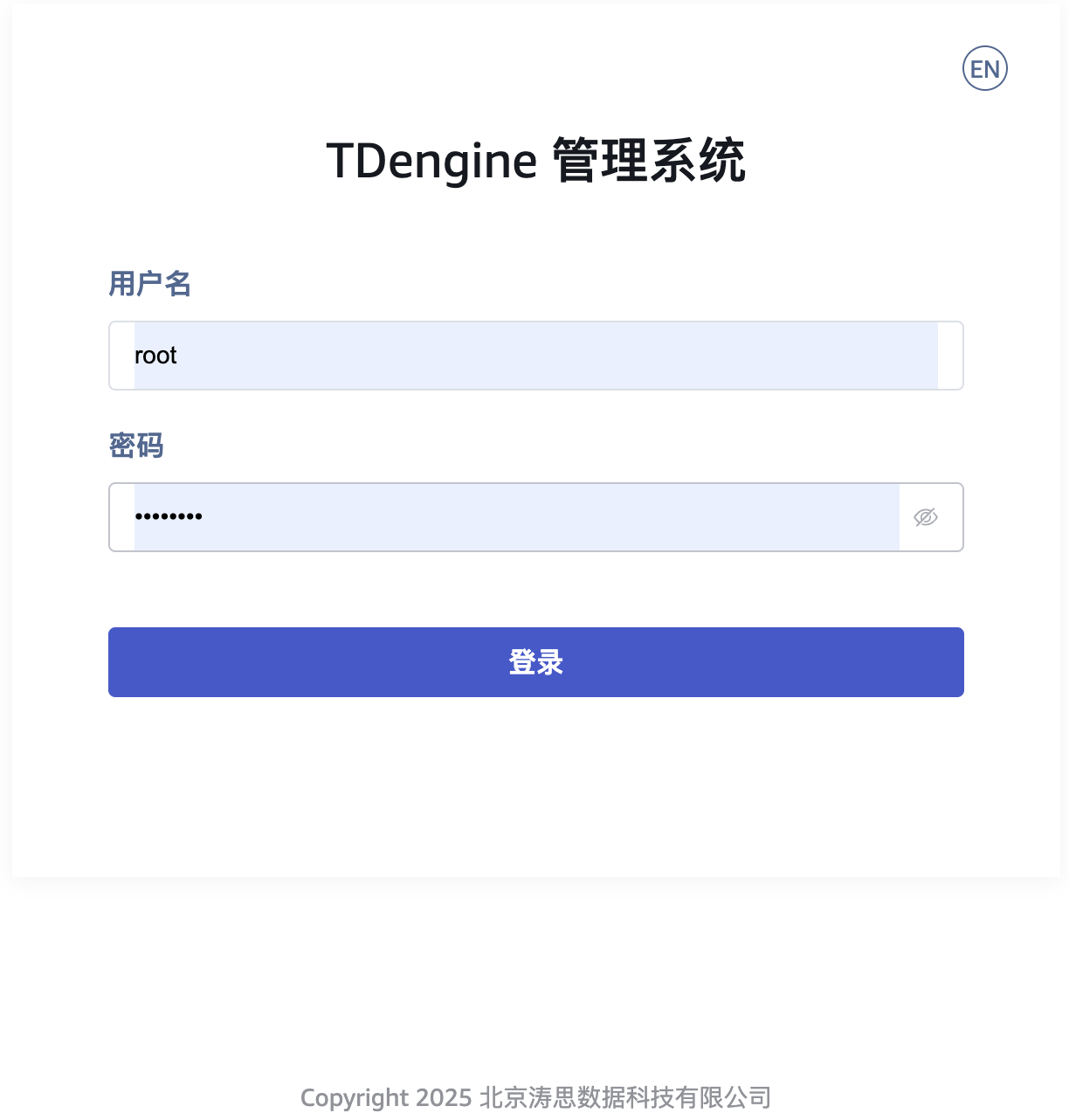

自带的taos explorer

http://8.15*.**.123:6060/

DBeaver

附件一：TDengine基本操作

TDengine 基本操作围绕“超级表（STable）+ 子表”数据模型，使用标准 SQL 进行建模、写入与查询。核心命令如下：‌‌

‌创建数据库‌：CREATE DATABASE db_name KEEP 365;（KEEP 设定数据保留天数）
‌创建超级表‌：CREATE STABLE meters (ts TIMESTAMP, current FLOAT, voltage INT) TAGS (location BINARY(64), groupId INT);（首列必为 TIMESTAMP，TAGS 定义标签）
‌创建子表‌：CREATE TABLE m1 USING meters TAGS ('beijing', 1);
‌插入数据‌：INSERT INTO m1 VALUES (now, 10.3, 219, 0.32); 或批量插入多行/多表
‌查询数据‌：标准 SQL，如 SELECT * FROM meters WHERE ts > NOW - 1d; 或聚合 SELECT AVG(current) FROM meters INTERVAL(1h);
‌查看对象‌：SHOW DATABASES; / SHOW STABLES; / SHOW TABLES; / DESCRIBE m1;
‌删除对象‌：DROP TABLE m1; 或 DROP STABLE meters;（会删所有子表） ‌‌

操作需通过 ‌taosCLI‌（命令行）、‌taosX‌（GUI）或 ‌RESTful API‌（端口 6041）执行。TDengine 默认使用 root/taosdata 登录，支持类标准 SQL（无 UPDATE/DELETE，但可覆盖同主键时间戳记录）。时序查询常结合 INTERVAL（时间窗口）、FILL（空值填充）和 GROUP BY tags（按设备/位置分组）。‌‌

如刚部署，建议用 Docker 快速启动：docker run -d --name tdengine -p 6030:6030 -p 6041:6041 tdengine/tdengine:3.3.6.0，再用 taos -h localhost 连接
